Advance Paris X-P1200 Stereo Pre-amplifier
Advance Paris X-P1200 Preamplifier - Advance Paris
Respecting your sources

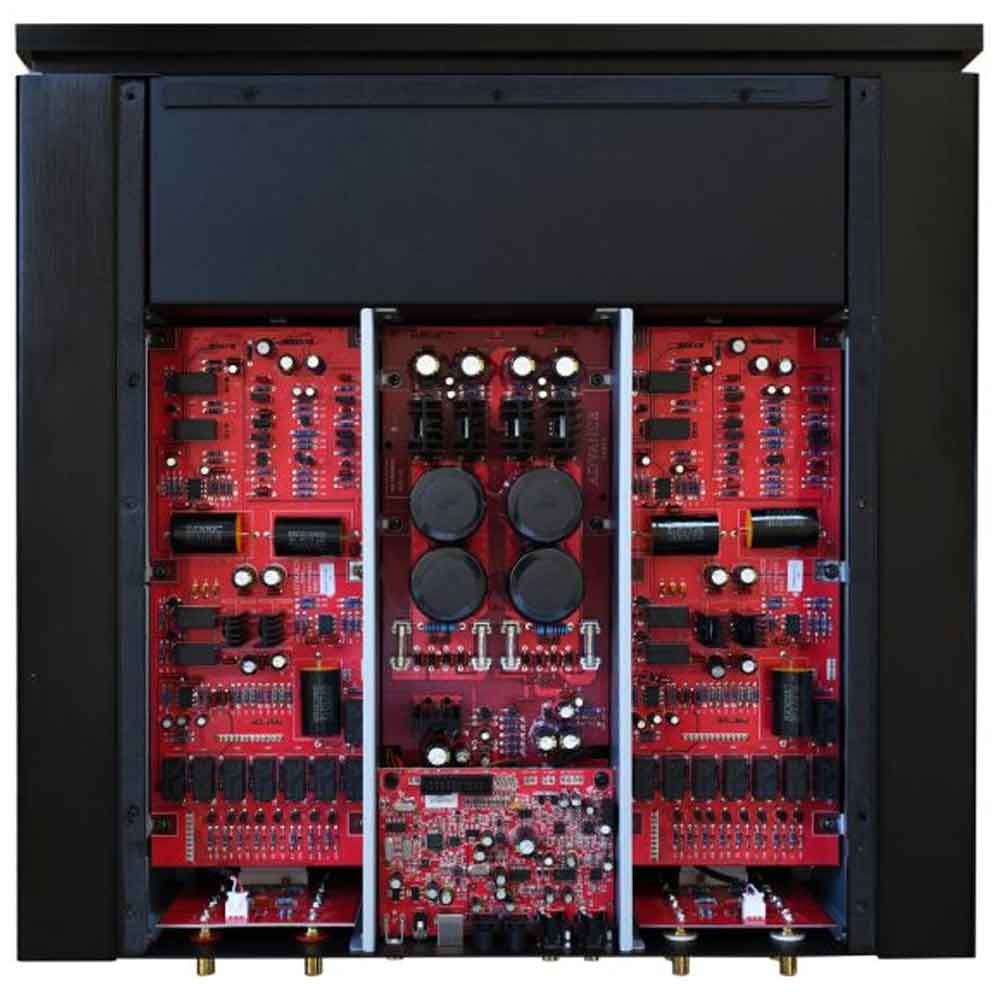

The new X-P1200 preamplifier is the showcase of Advance Paris’s expertise. A reference stereo preamplifier, it is in fact composed of two mono preamplifiers assembled in a single compartmentalized housing to ensure complete isolation of the various circuits and preamplification stages.
This design ensures better channel separation (crosstalk) and therefore a better stereo effect.
Not only does your X-P1200 feature independent preamplifier circuits for the left and right channels, but their power supplies are also designed to meet the most demanding requirements. that Advance Paris has chosen to make them totally independent thanks to the use of two transformers.
The X-P1200 is equipped with 9 analog inputs, including 2 A USB B (XMOS) input, 2 coaxial digital inputs and 2 digital inputs. Output side, you have a choice of balanced XLR outputs or unbalanced RCA type. Everything has been thought out to make this preamplifier the reference for best audio systems: mains input with choke filtering and capacitors, two high-performance toroidal transformers current capacity, filtering with 4 capacitors 12000uF / 150V.
Control is by integrated circuits mounted on heat sinks. Inputs and outputs are switched by relays without loss of contact. Cinch inputs are balanced and desymmetrized using high-quality Burr Brown operational amplifiers.
Digital source processing is entrusted to an Analog Device AD-1955 converter. This converter is particularly suited to high-end and SACD applications. Digital-to-analog decoding is of the highest quality, with a signal-to-noise ratio of 123 dB and top audio quality. It features a sigma delta multibit modulator, high-performance digital interpolation filters, and a continuous-time differential current output DAC.
Playback of audio files from a PC or MAC is entrusted to XMOS, a benchmark solution in the field of high-quality audio reproduction.
Without a doubt, the X-P1200 will be combined with the X-A1200 mono unit to create an exceptional hifi system.
What to expect in the box:
- X-P1200 Preamplifier
Product Details:
- Output level: 10.5 +/-0.5dB
- Frequency response: 10Hz-150kHz
- Distortion: < 0.01%
- Signal-to-noise ratio: ≥ 110 dB
- Channel separation: ≥ 110 dB
- Unbalanced input impedance: 23KΩ
- Balanced input impedance: 35KΩ
- IN LEVEL (CD/AUX): < 500mV
- Phono MM/MC input level: 48dB/64dB
- Audio receiver: CS8416
- AC input: 110-230V
- Max. power consumption: ≤ 30W
- Transformer: 2
- Width: 440 mm
- Height: 155 mm
- Depth: 430 mm
- Net weight: 14.2 kg
- Gross weight: 15.6 kg
- DAC: AD1955
