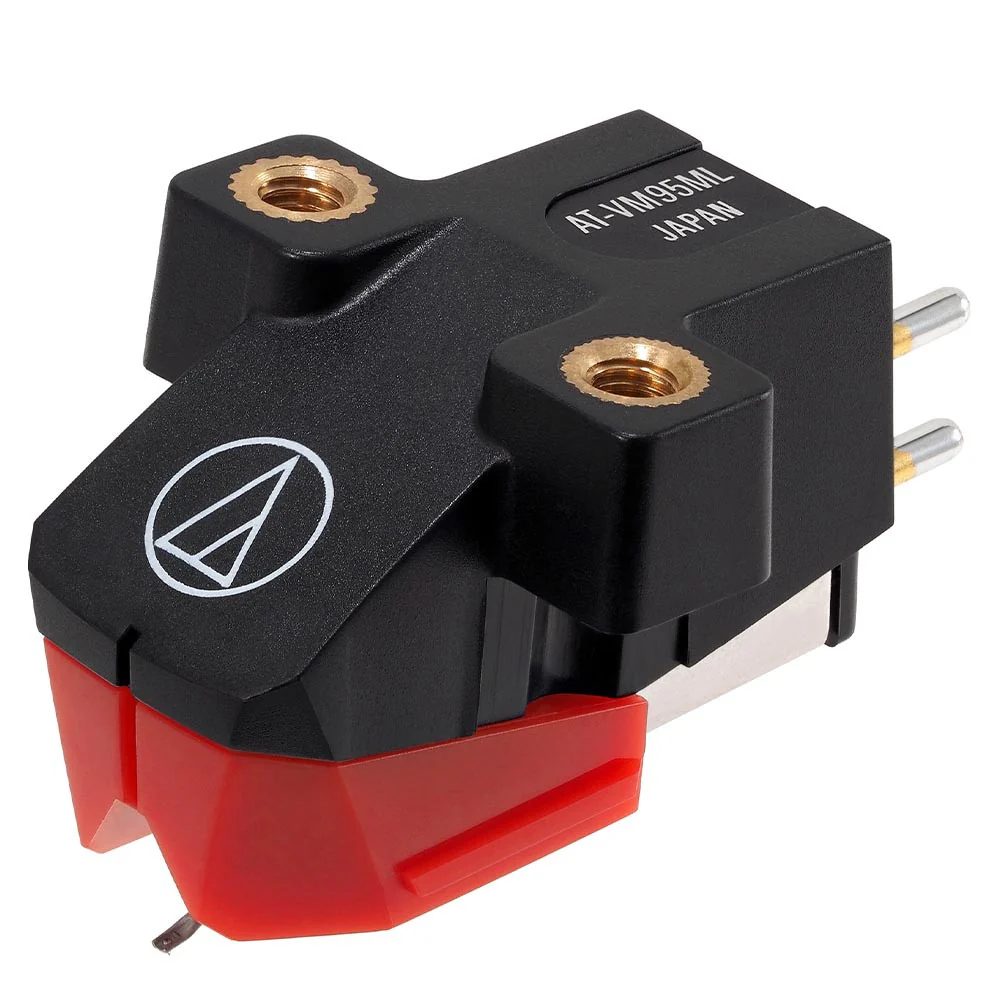

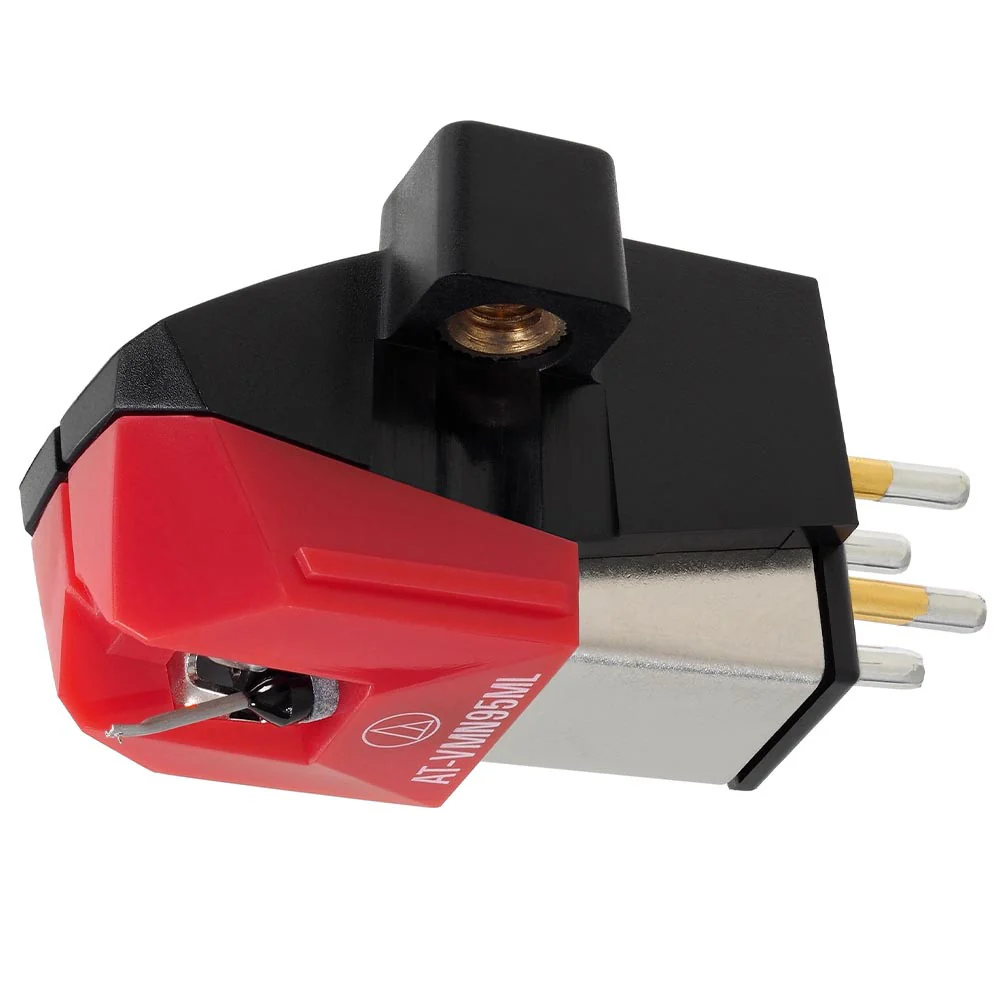

Audio-Technica AT-VM95ML Dual Moving Magnet Cartridge - Audio-Technica

This VM95 Series cartridge with 2.2 x 0.12 mil Microlinear stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Features:

• VM Series dual magnet cartridge with 2.2 x 0.12 mil Microlinear stylus
• Aluminum cantilever
• Durable low-resonance polymer housing
• Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
• Compatible with any AT-VMN95 replacement stylus

Specs

• Frequency Response: 20-25,000 Hz
• Channel Separation: 23 (dB at 1 kHz)
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
• Stylus Construction: Nude square shank
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 3.3 k ohms (1 kHz)
• DC Resistance: 485 ohms
• Coil Inductance: 550 mH (1 kHz)
• Recommended load capacitance: 100 to 200 pF
• Output: 3.5 mV (1 kHz, 5 cm/sec.)
• Channel Balance: 1.5 dB (1 kHz)

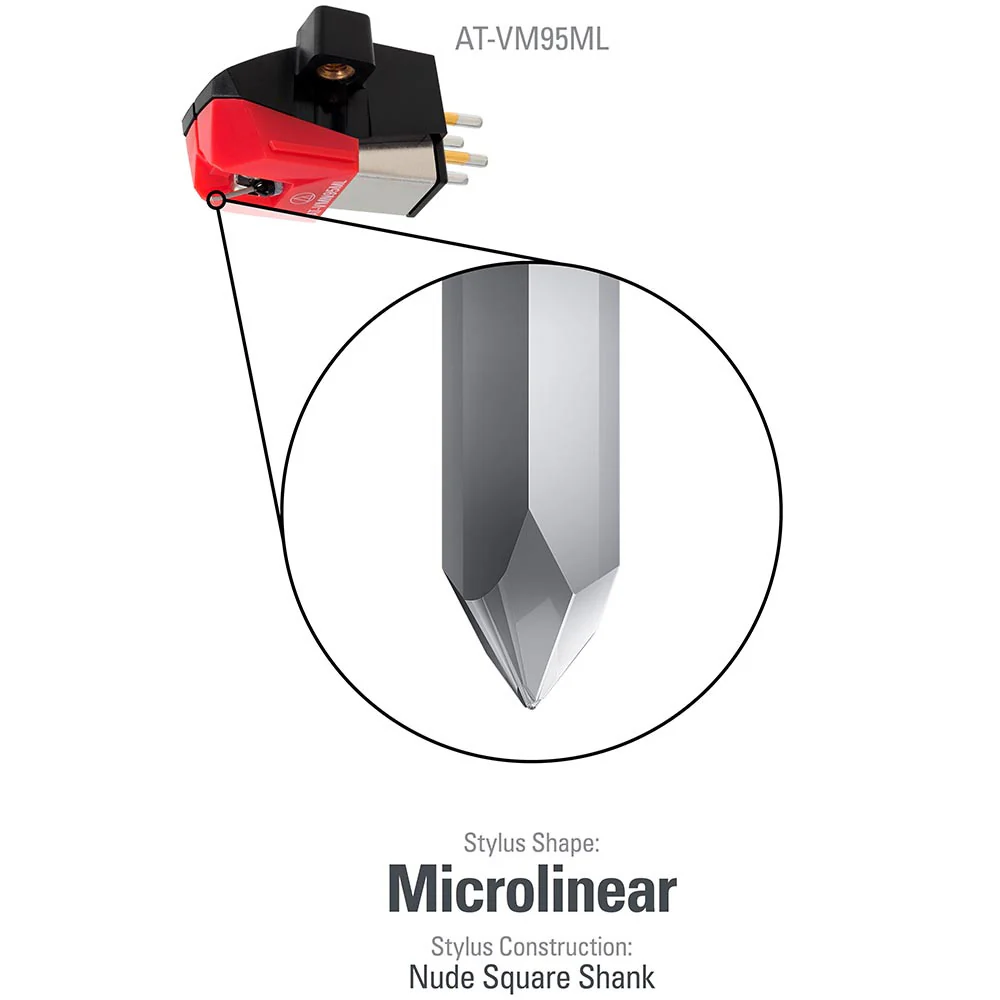

• Stylus Shape: 2.2 x 0.12 mil Microlinear
• Cantilever: Aluminum pipe
• Mount: Half-inch
• Weight: 6.1 g (0.22 oz)
• Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
• Replacement Stylus: AT-VMN95ML

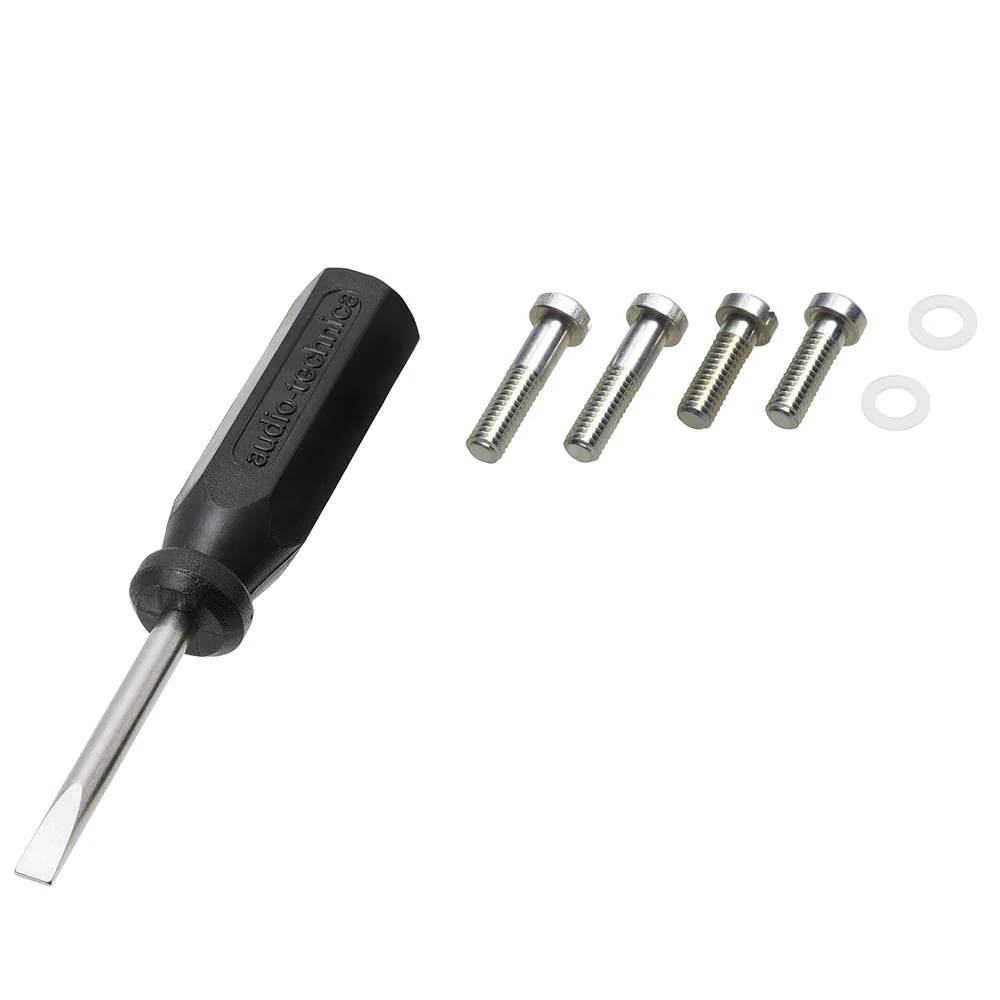

• Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
