Bowers & Wilkins CCM664SR Single Stereo In-Ceiling Speaker (each)
Bowers & Wilkins CCM664SR Single Stereo In-Ceiling Speaker (each) - Bowers & Wilkins
See nothing, hear everything

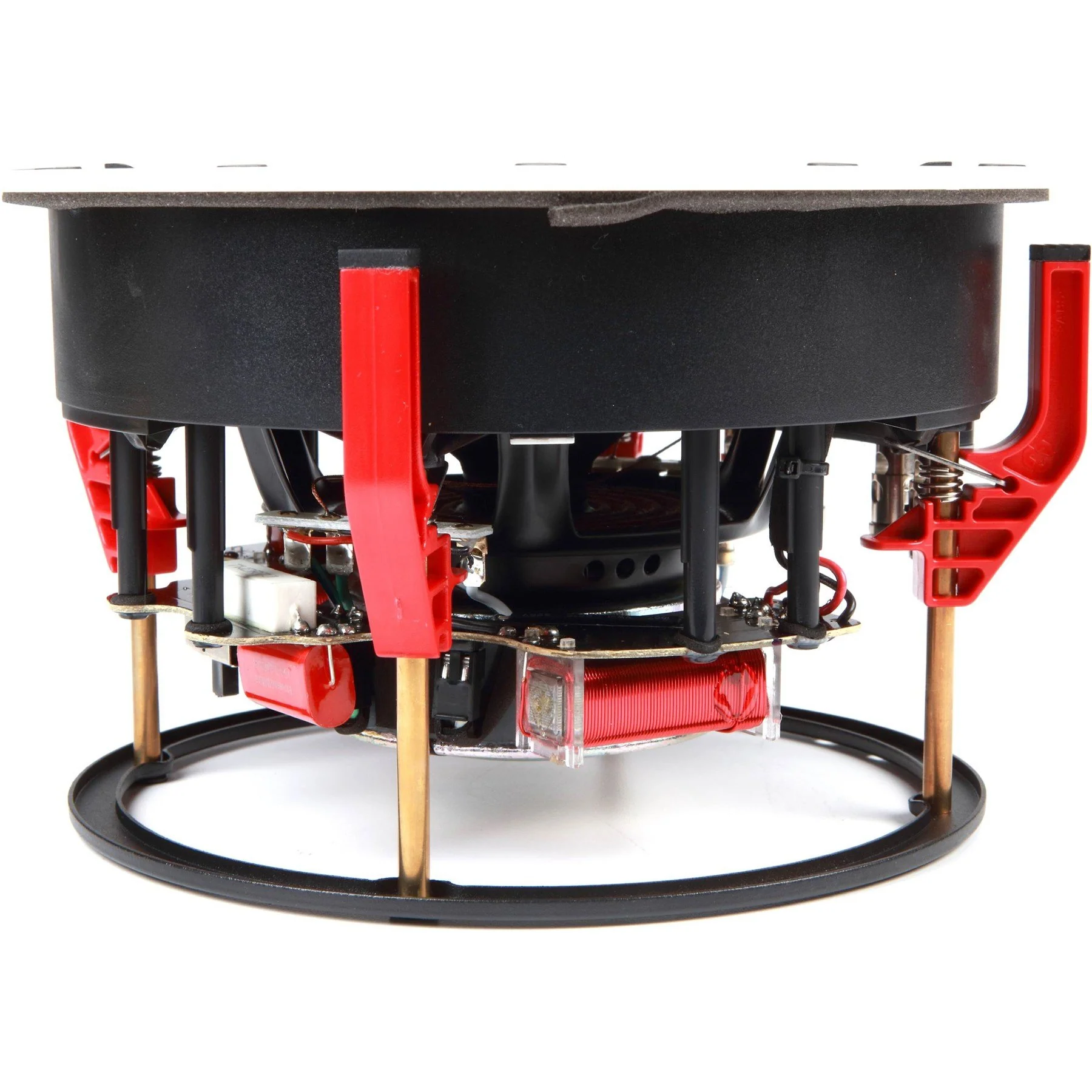

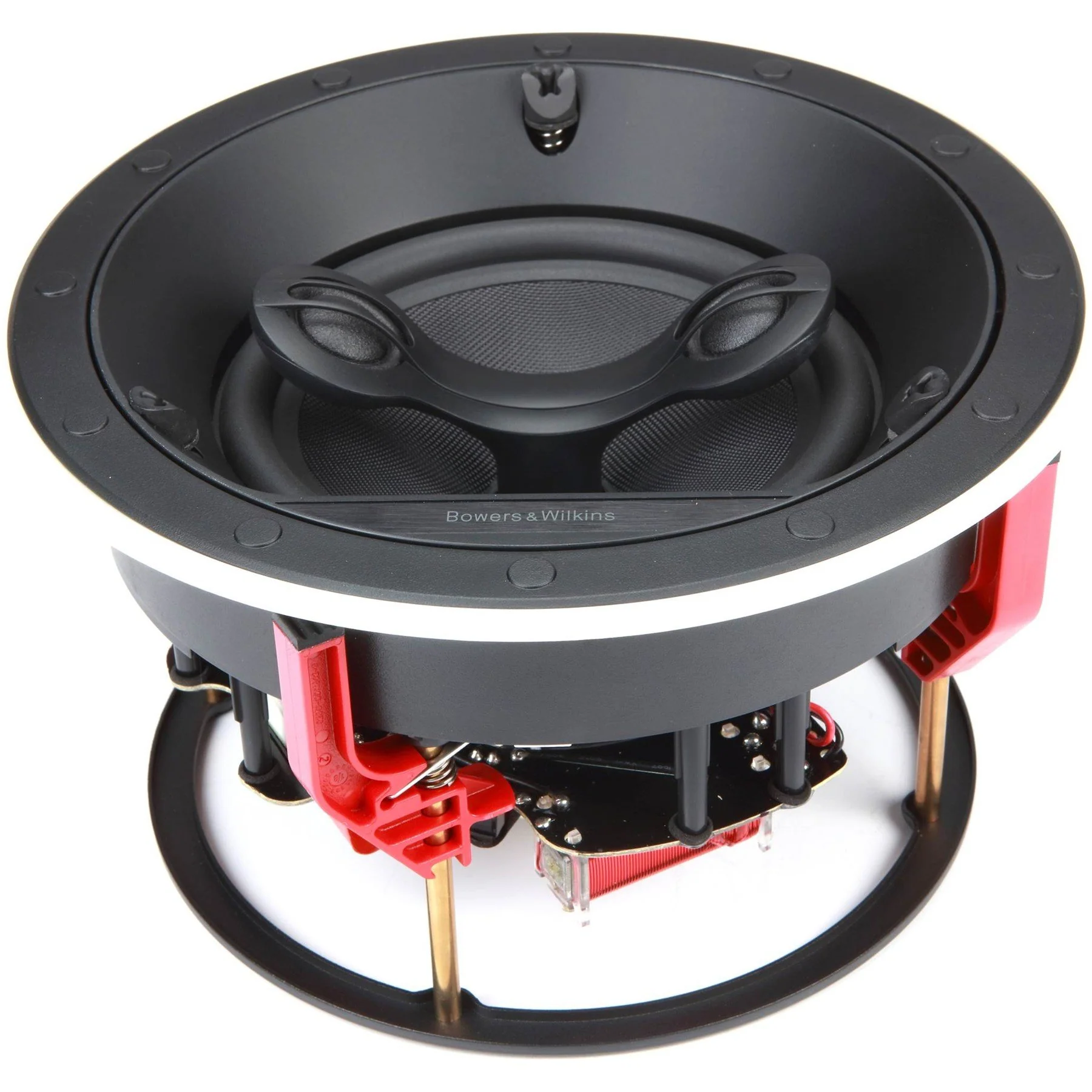

The CCM664SR is a dual, two-way ceiling speaker featuring a 6" woven glass fiber cone bass/midrange driver and two offset soft dome tweeters. The twin voice coil bass/midrange driver and tweeters allow a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel. The CCM664SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel. Incorporating QuickDogs and plug-and-play functionality it is quick and easy to install.
Technical Specifications:
- Description: 2-way dual channel in-ceiling system
Drive Units
- Dual 1" soft dome tweeter
- 6" black glass fiber cone bass/midrange
- Frequency Range (-6dB): 48Hz – 30kHz
- Recommended Amp Power: 25 – 80w (per channel)
- Sensitivity SPL (2.83V, 1m)
- 82dB (per channel)
- 88dB (both channels driven)
- Impedance Nominal (min): 8Ω (4Ω) (per channel)
- Frame diameter: 9.5"
- Cut-out diameter: 8"
- Depth behind surface: 5.2"
- Protrusion: 0.2"
- Pre-mount Kit: C6
- Back Box: 6C
Audiolab Stereo & Video Center
Bowers & Wilkins CCM664SR Single Stereo In-Ceiling Speaker (each) - Bowers & Wilkins
See nothing, hear everything
The CCM664SR is a dual, two-way ceiling speaker featuring a 6" woven glass fiber cone bass/midrange driver and two offset soft dome tweeters. The twin voice coil bass/midrange driver and tweeters allow a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel. The CCM664SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel. Incorporating QuickDogs and plug-and-play functionality it is quick and easy to install.
Technical Specifications:
- Description: 2-way dual channel in-ceiling system
Drive Units
- Dual 1" soft dome tweeter
- 6" black glass fiber cone bass/midrange
- Frequency Range (-6dB): 48Hz – 30kHz
- Recommended Amp Power: 25 – 80w (per channel)
- Sensitivity SPL (2.83V, 1m)
- 82dB (per channel)
- 88dB (both channels driven)
- Impedance Nominal (min): 8Ω (4Ω) (per channel)
- Frame diameter: 9.5"
- Cut-out diameter: 8"
- Depth behind surface: 5.2"
- Protrusion: 0.2"
- Pre-mount Kit: C6
- Back Box: 6C
Audiolab Stereo & Video Center
Original: $574.00
-65%$574.00
$200.90Description
Bowers & Wilkins CCM664SR Single Stereo In-Ceiling Speaker (each) - Bowers & Wilkins
See nothing, hear everything
The CCM664SR is a dual, two-way ceiling speaker featuring a 6" woven glass fiber cone bass/midrange driver and two offset soft dome tweeters. The twin voice coil bass/midrange driver and tweeters allow a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel. The CCM664SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel. Incorporating QuickDogs and plug-and-play functionality it is quick and easy to install.
Technical Specifications:
- Description: 2-way dual channel in-ceiling system
Drive Units
- Dual 1" soft dome tweeter
- 6" black glass fiber cone bass/midrange
- Frequency Range (-6dB): 48Hz – 30kHz
- Recommended Amp Power: 25 – 80w (per channel)
- Sensitivity SPL (2.83V, 1m)
- 82dB (per channel)
- 88dB (both channels driven)
- Impedance Nominal (min): 8Ω (4Ω) (per channel)
- Frame diameter: 9.5"
- Cut-out diameter: 8"
- Depth behind surface: 5.2"
- Protrusion: 0.2"
- Pre-mount Kit: C6
- Back Box: 6C
