Definitive Technology DYMENSION DM20 Passive Slim Center Channel Speaker - Definitive Technology

The Dymension™ DM20 provides exceptional center channel definition to any immersive home theater system with a low-profile design that can be placed below your TV or be wall-mounted in an LCR configuration. Its four long-throw woofers and aluminum oxide tweeter deliver dynamic, full-range sound with superior vocal clarity.

Key Benefits

Slim, Wall-Mountable Design
DM20’s slim, low-profile design accommodates home theater cabinetry or can be wall-mounted easily. But don’t let its size fool you, the DM20 produces powerful, clear sound.

Advanced Five-Driver Array
The DM20’s four 4” midrange woofers and 1” tweeter deliver dynamic, full-range sound that commands your attention and pulls you into the action.

Custom Aluminum Oxide Tweeters
The DM20’s rigid, well-damped tweeter provides smooth extended response with crisp transients and exceptional definition. You’ll notice clearer speech than ever before, along with a more precise sonic image.

Long-Throw Midrange Woofers
Midrange woofers feature composite polymer cones that produce superior midrange detail. Long-throw surrounds optimize driver excursion for improved low end performance.

Timbre-Matched
Consistent sound across Definitive Technology series gives you the flexibility to mix and match Dymension™, Dymension CI, and Mythos speakers to design your dream home theater and whole-home system.

Disappearing Design
The DM20 is wrapped in an acoustically transparent black cloth grille. As soon as you dim the lights, it virtually disappears into your room—so you can focus on the movie, not your speakers.

Product Features:

• Slim profile center channel complements your décor
• Flexible use as a center channel or LCR speaker
• Aluminum oxide tweeter provides crisp highs, ultra-clear speech
• Five-driver array for dynamic full-range sound
• Long-throw drivers deliver improved low-end performance
• Composite polymer cones produce uniform, detailed mids
• Timbre-matched with Definitive Technology speakers

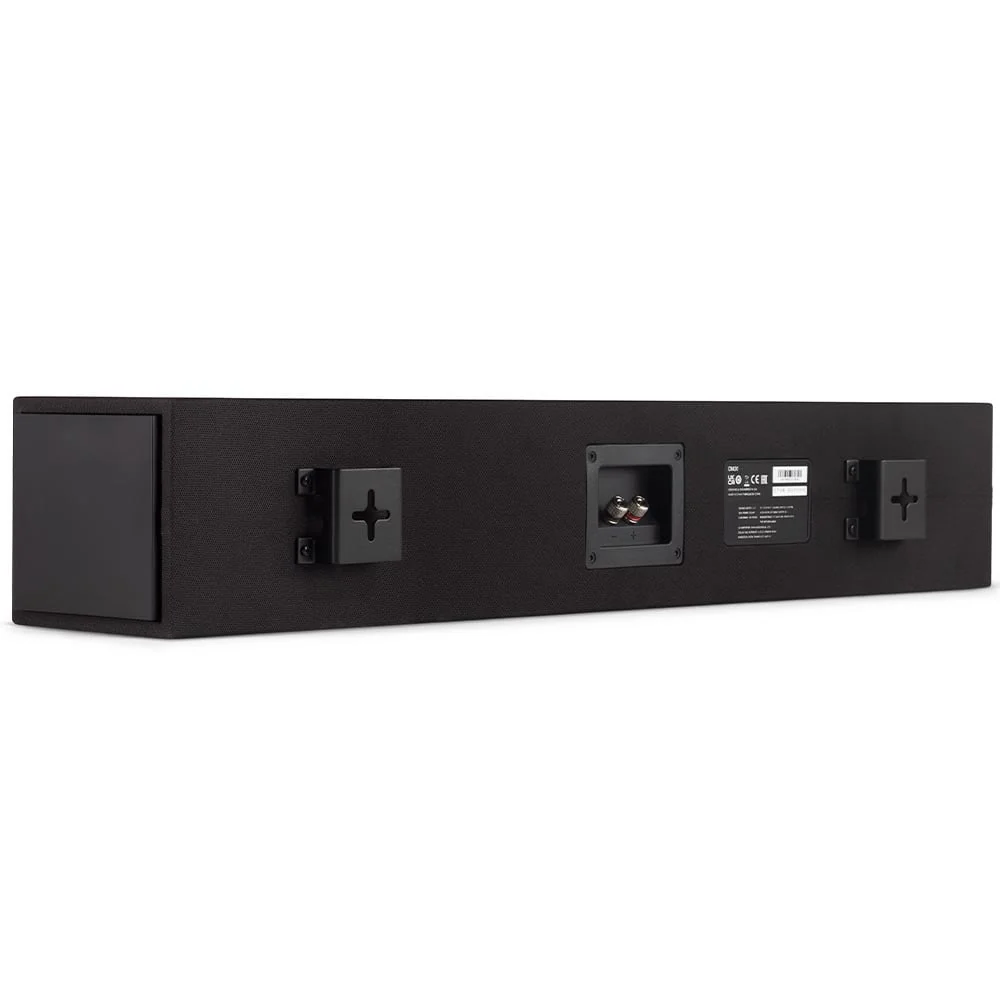

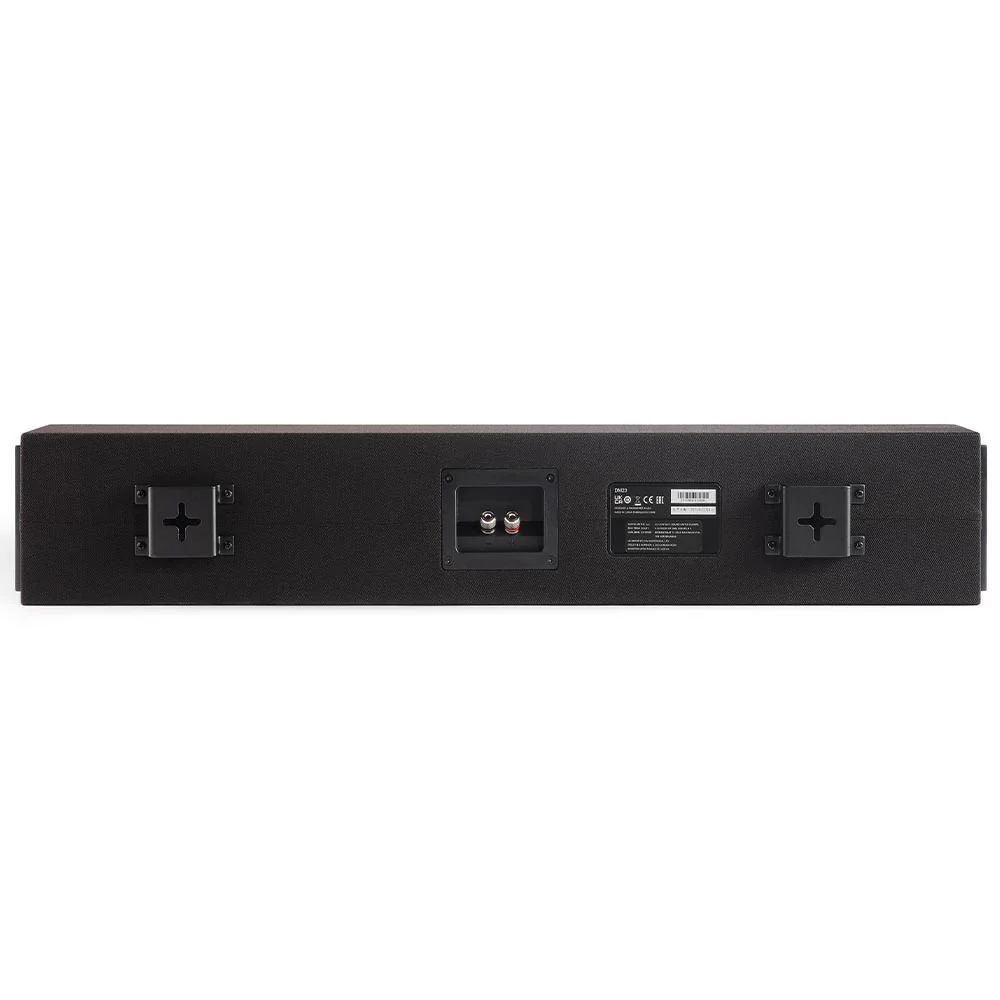

• Simple, hassle-free installation, wall mount or on console
• Black fabric treatment virtually disappears into the room

SPECIFICATIONS:

• Dimensions (H × W × D): 5.3 × 30.5 × 6.5 in. 134 × 775 × 166 mm
• Weight: 22 lbs (10 kg)
• Color: Black
• Grille Material: Acoustically transparent black cloth (not removable)
• Tweeter: (1) 1 in. aluminum oxide dome
• Midrange/Midbass: (4) 4 in. midrange woofers
• Frequency Response: 64 Hz–30 kHz (-10dB), 91 Hz–23 kHz (-3dB)
• Nominal Impedance: 4Ω (8Ω compatible)
• Sensitivity: 89dB (2.83V/1m)
• Recommended Amplifier Power Rating: 50–200W
