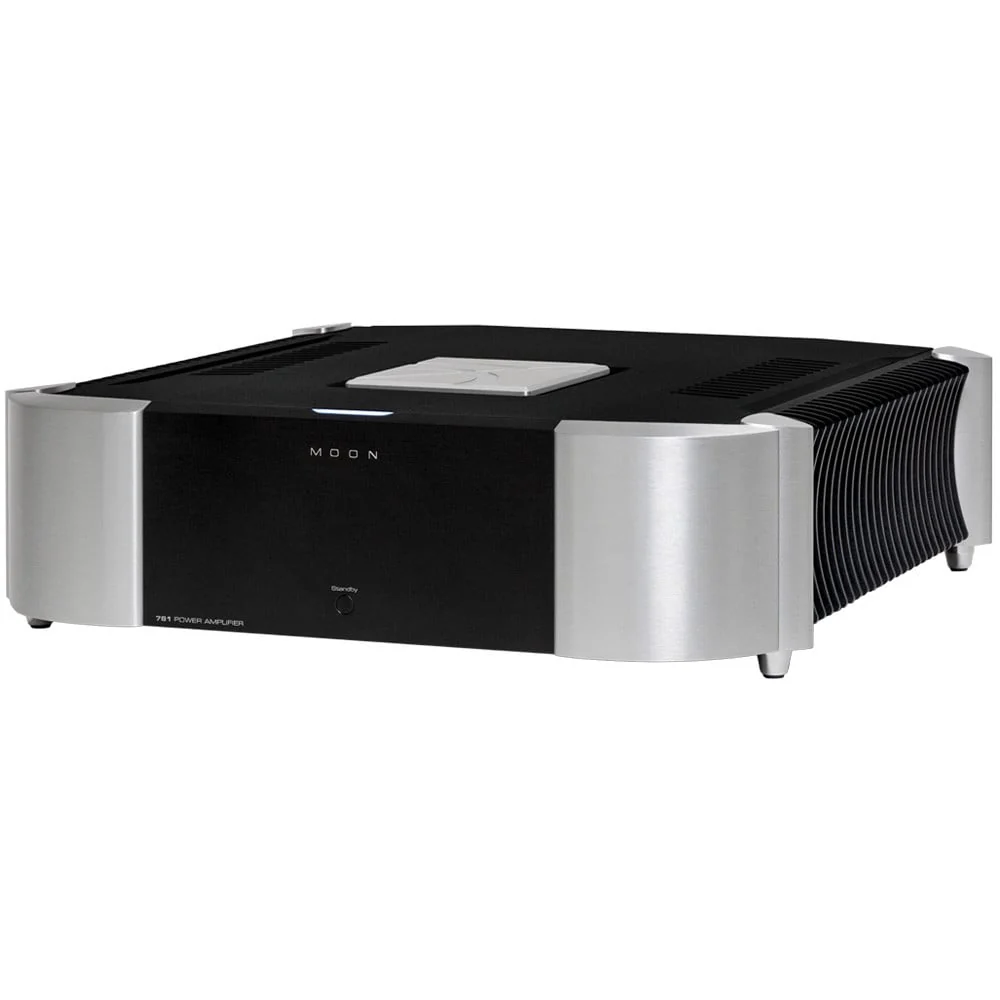

MOON 761 Power Amplifier - MOON

The MOON 761 has one job to perform, and it performs it with authority. This power amplifier effortlessly delivers delicate audio signals from a preamplifier to loudspeakers with absolute transparency and finesse.

Refinement The transparency of the MDCA circuit with no global feedback to deliver a rich performance on an astonishingly deep soundstage.

Authority 200W per channel easily controls the most demanding loudspeakers

Sophistication A harmony of form and function matches unrivaled build quality to elegant industrial design.

Design features

• MDCA – MOON Distortion-Canceling Amplifier
• No Global Feedback Design
• MOON Transistors

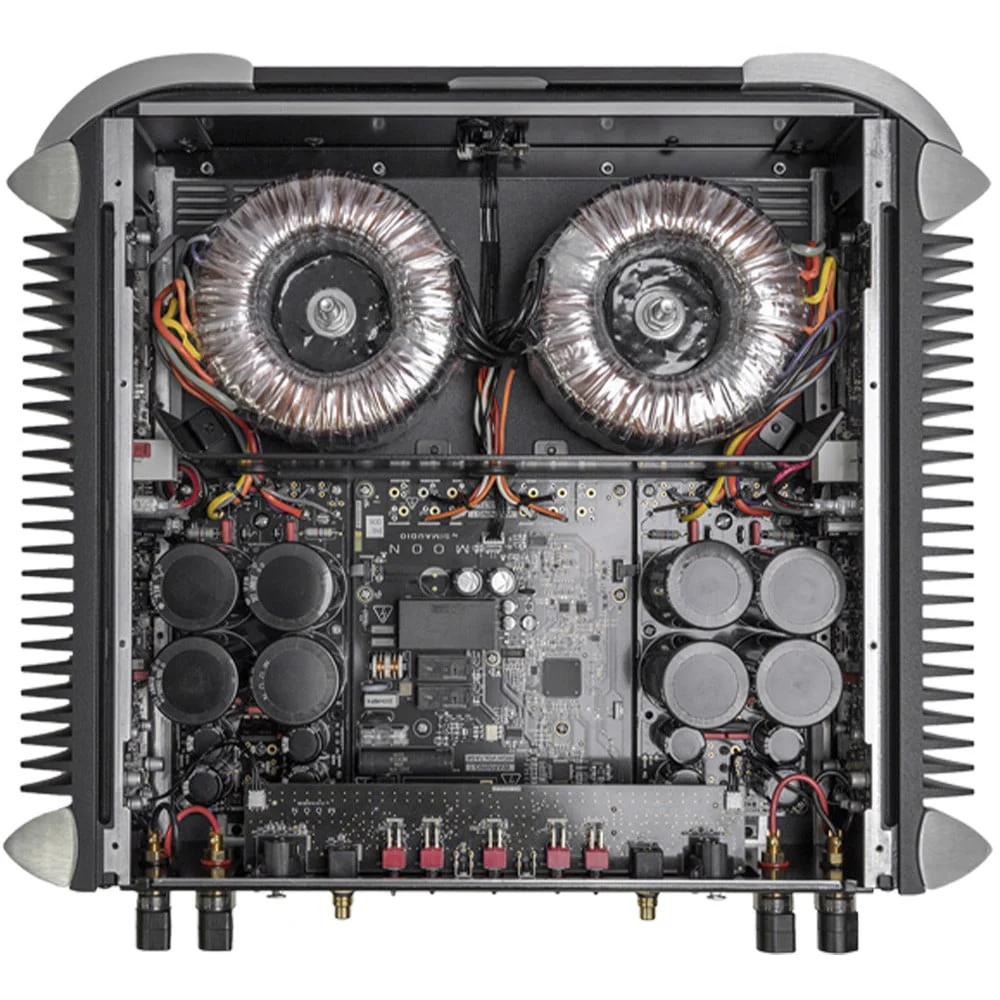

• Dual Mono Configuration
• Monaural Mode Toggle Switch
• MOONLink
• Multicolour LED Indicator

Specifications: Output Power:

• 200 watts per channel stereo 8 ohms
• 400 watts per channel stereo 48 ohms
• 600 watts bridged in mono 8 ohms
• Input Sensitivity: 1.1 V
• Input Impedance: 47 kΩ
• Gain: 31 dB
• Frequency Response: 2 Hz – 100 kHz (+0 dB / –3 dB)
• Crosstalk: –116 dB
• Signal-to-Noise Ratio: 117 dB
• Total Harmonic Distortion + Noise (@ 1 W): 0.002%
• Total Harmonic Distortion + Noise (@ 200 W): 0.001%
• Intermodulation Distortion: 0.002%
• Damping Factor: 800
• Power Consumption (Idle): 55 W
• Power Consumption (Full Power Standby): 50 W
• Power Consumption (Low Power Standby): 1.25 W
• Shipping Weight: 79 lbs / 36 kg
• Dimensions (width x height x depth): 18.95 x 5.53 x 17.53 in, 48.1 x 14 x 44.5 cm

What to expect in the box:

• The following accessories should be included inside the box with your power amplifier:
• Owner’s manual
• AC power cable
• 1 spare fast-blow fuse
• MOONLink
• Warranty and product registration information (USA and Canada only)
