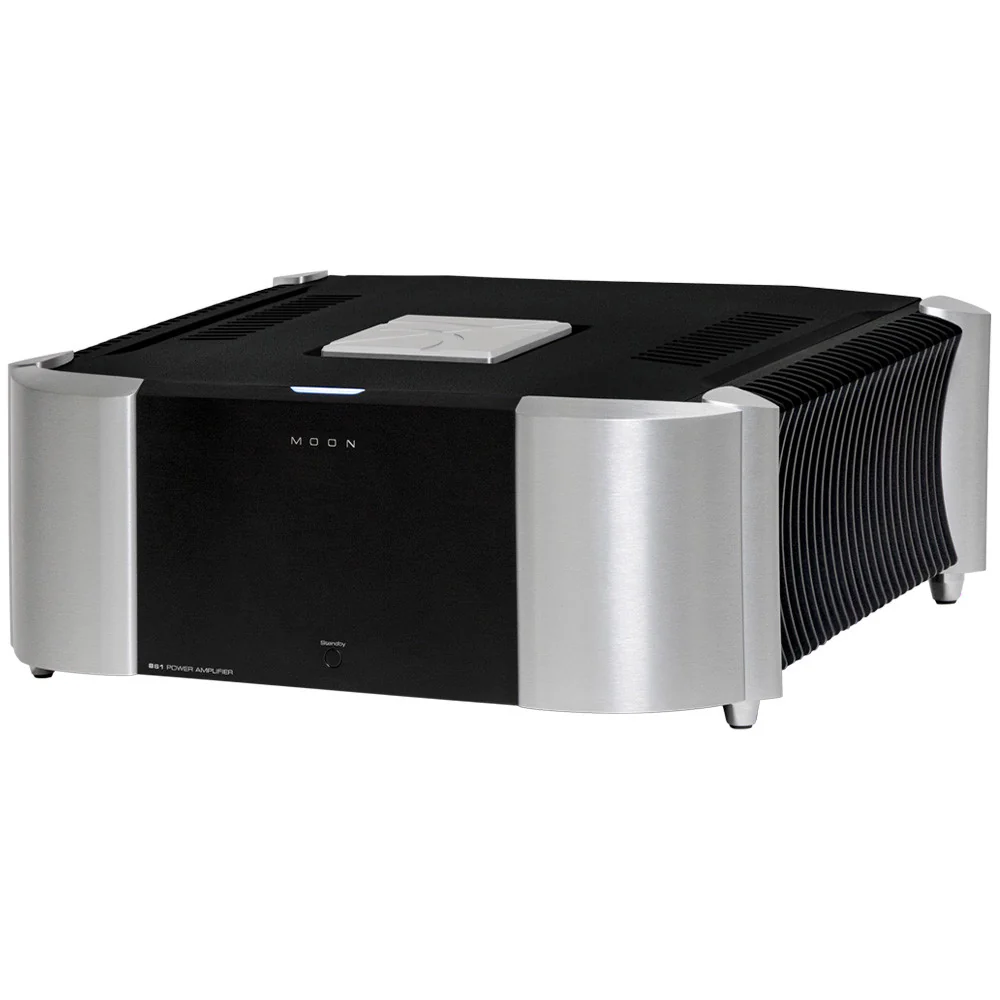

MOON 861 Power Amplifier - MOON

Purity
Years of R&D perfecting the MDCA circuit resolves every detail to reveal the most realistic presentation with no global feedback.

Dominant
With the dynamic potential of two 1500VA transformers and 228000uF of capacitance, a formidable amplifier that effortlessly generates 300W per channel.

Pedigree
Echoing the realization of the incomparable 888 in the North Collection.

Specifications

• Output Power (Stereo 8 Ω): 300 W
• Output Power (Stereo 4 Ω): 600 W
• Output Power (Mono 8 Ω): 800 W
• Input Sensitivity: 1.4 V
• Input Impedance: 47 kΩ
• Gain: 31 dB
• Frequency Response: 2 Hz – 100 kHz (+0 dB / –3 dB)
• Crosstalk: –119 dB
• Signal-to-Noise Ratio: 119 dB
• Total Harmonic Distortion + Noise (@ 1 W): 0.002 %
• Total Harmonic Distortion + Noise (@ 300 W): 0.001%
• Intermodulation Distortion: 0.002%
• Damping Factor: 900
• Power Consumption (Idle): 85 W
• Power Consumption (Full Power Standby): 75 W
• Power Consumption (Low Power Standby): 1.25 W
• Shipping Weight: 125 lbs / 58 kg
• Dimensions (width x height x depth): 18.95 x 8.26 x 24 in, 48.1 x 21 x 60.9 cm

Design features

• MDC& A – MOON Distortion-Cancelling Amplifier
• No Global Feedback Design
• MOON Transistors
• Dual Mono Configuration
• Monaural Mode Toggle Switch
• MOONLink
• Multicolour LED Indicator

In The Box

• The following accessories should be included inside the box with your power amplifier:
• Owner’s manual
• AC power cable
• 1 spare fast-blow fuse
• MOONLink
• Warranty and product registration information (USA and Canada only)
