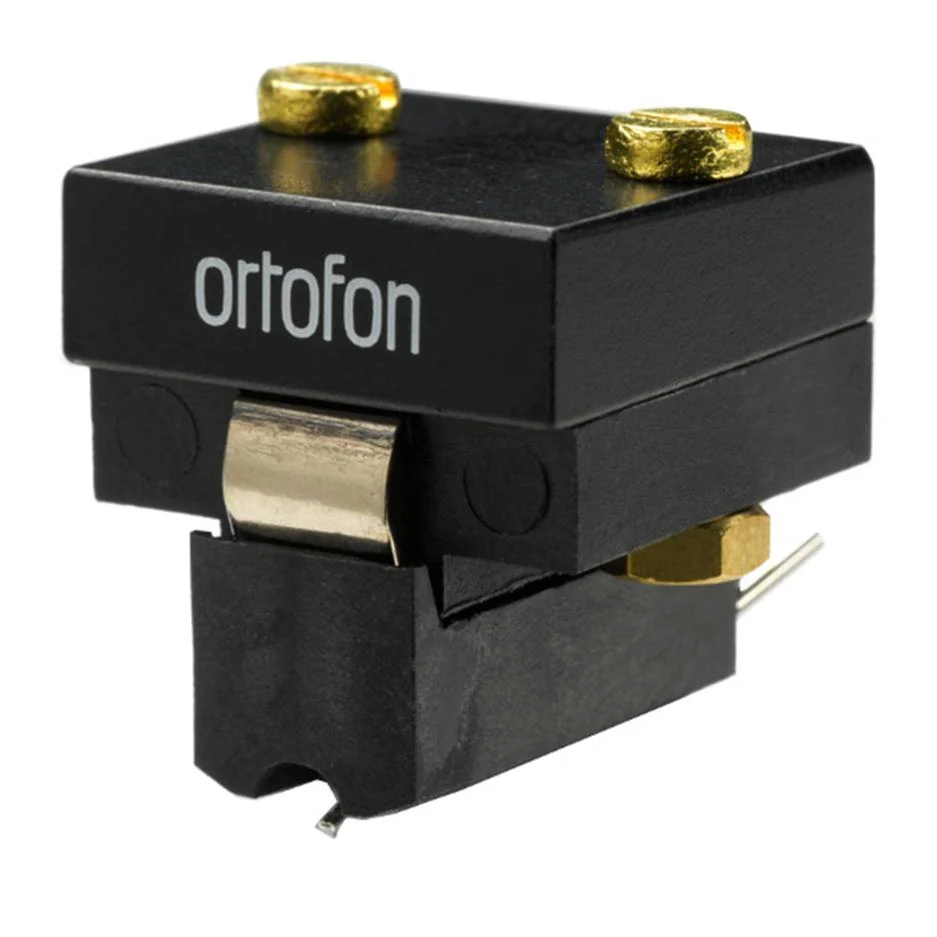

Ortofon SPU Classic N Moving Coil Cartridge - Ortofon

The SPU Classic N provides the same sound reproduction properties as the SPU Classic GM series, but is sold without the integrated headshell unit. The SPU Classic N is a Moving Coil (MC) cartridge with an 18µm spherical stylus profile. Listeners who wish to mount the SPU Classic on a traditional headshell may do so, and those with vintage SPU-type headshells can use the Classic N to recreate an authentic and functional SPU cartridge.

Product Details:

• Output voltage at 1000Hz, 5cm/sec. 200 ¼V
• Channel balance at 1kHz < 1 dB
• Channel separation at 1kHz > 20 dB
• Channel separation at 15 kHz > 10 dB
• Frequency range at -3dB 20-25,000 Hz
• Frequency response 20-20,000 Hz ± 3 dB
• Tracking ability at 315 Hz at recommended tracking force > 65 µm
• Compliance, dynamic lateral 8 µm/mN
• Stylus type Nude spherical
• Stylus tip radius R 18 ¼m
• Tracking force range 3.0-5.0 g (30-50 mN)
• Tracking force recommended 4.0g (40 mN)
• Tracking angle 20°
• Internal impedance, DC resistance 6 Ohm
• Recommended load resistance > 10 Ohm Cartridge weight 13 g
