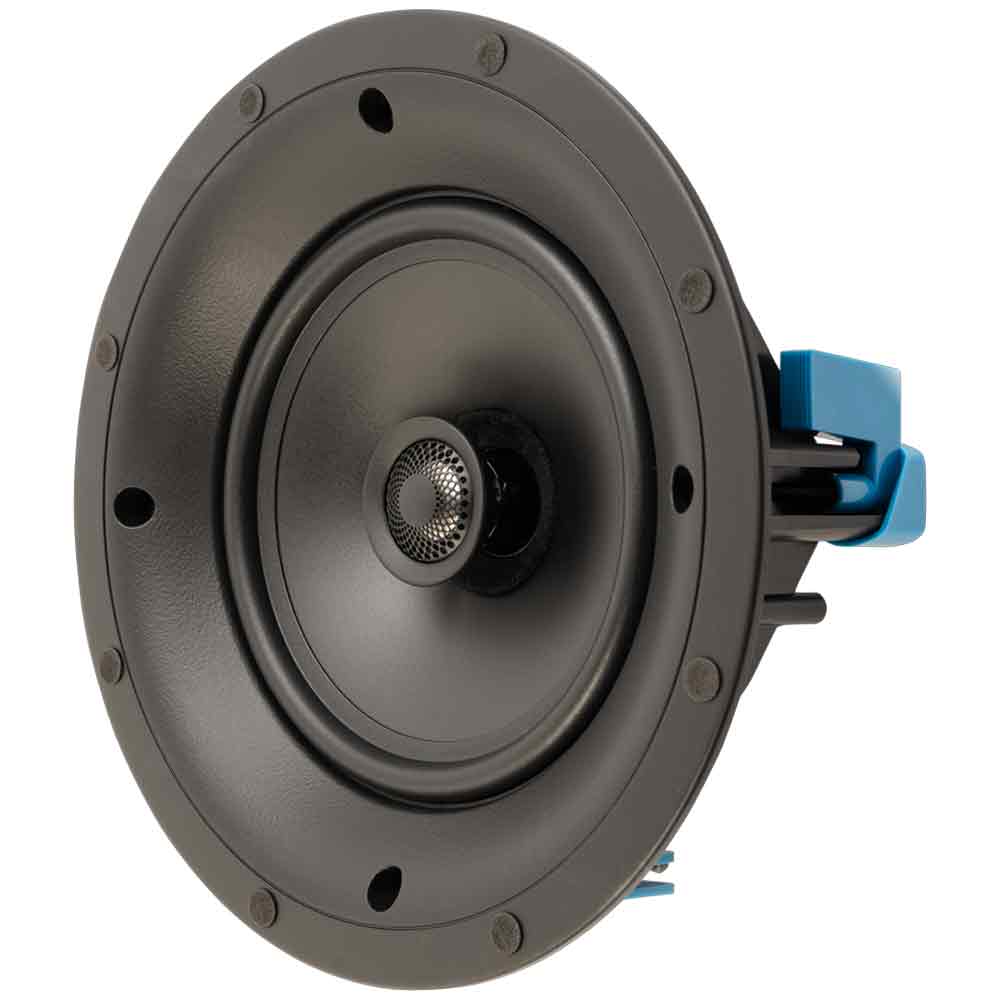

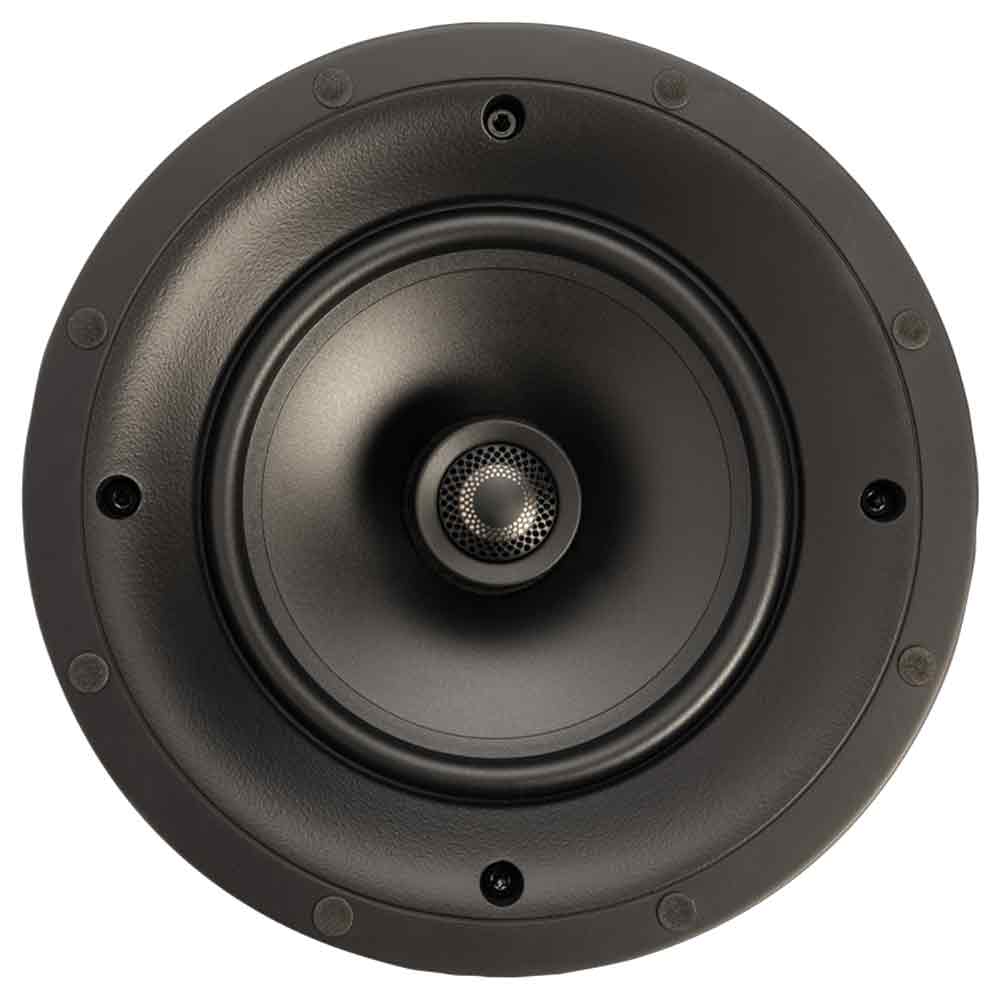

Paradigm CI Home H65-R v2 In-Ceiling Speaker - Paradigm

The Affordable Audiophile Collection.
Your “Go-To” Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, trickle-down technologies, easy installation, and a bezel-free micro-perf grille with an incredibly discreet aesthetic.

Paradigm’s Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
Protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.

Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™ Models
Our Stereo/Mono (SM) systems offer rich pure-fidelity dual-channel L/R sound from a single speaker. The Dual Directional Soundfield™ provides wider-than-normal dispersion making the systems ideal in small rooms that are less suited to a stereo pair, or where a single speaker is preferred.

Drivers in our 30°-Angled Guided Soundfield™ sit at a 30° angle from the ceiling, enabling you to adjust the direction of the sound, without compromising the curial sound dispersion pattern between drivers and baffle, thereby preserving sonic integrity. 30°-Angled Guided Soundfield™ systems are ideal as front speakers and as surround and/or rear speakers in a home theatre system.

Superior Mineral-filled Polypropylene Bass/ Midrange Cones:
Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.

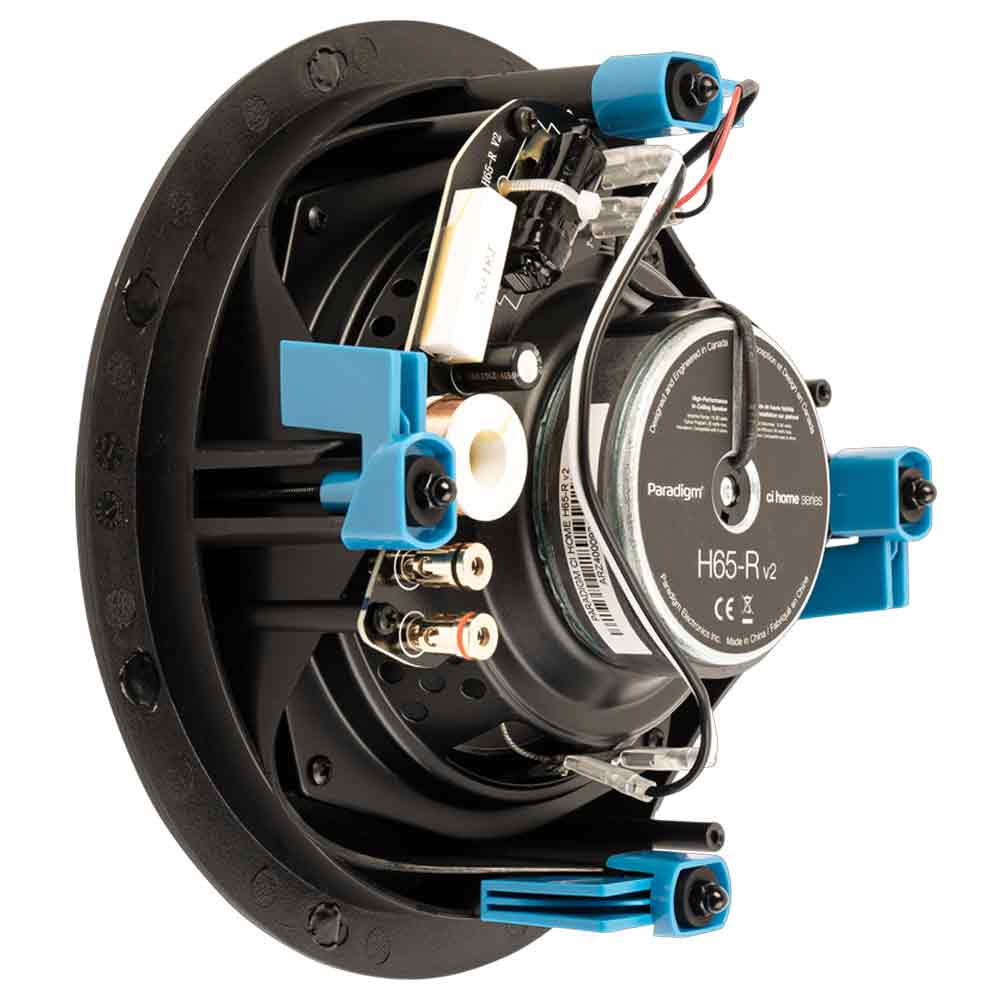

Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.

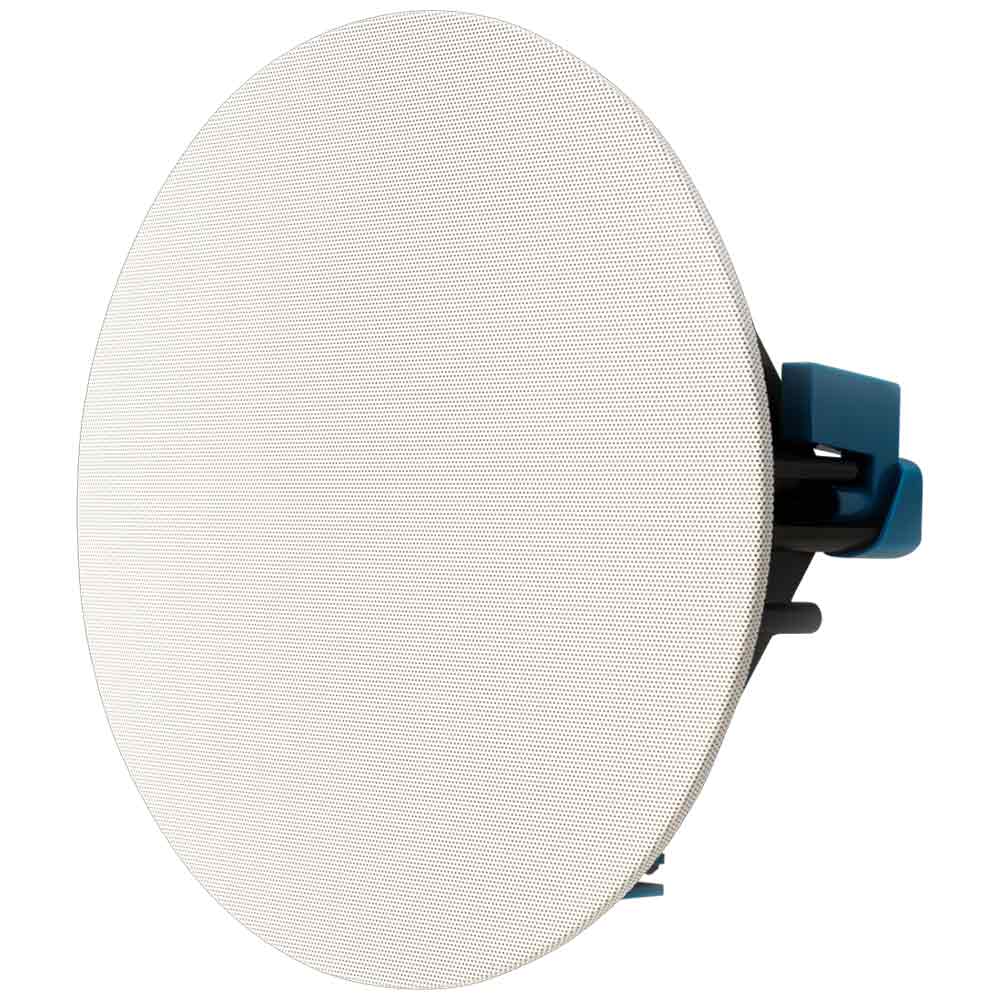

Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!

Partnered with the NRC
Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

What to expect in the box:

• CI Home H65-R v2 In-Ceiling Speaker

Product Details:

• DESIGN: 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps
• CROSSOVER: 2nd-order electro- acoustic at 3.0 kHz
• HIGH FREQUENCY DRIVER: 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
• FREQUENCY RESPONSE ON-AXIS: ±2 dB from 70 Hz - 20 kHz
• FREQUENCY RESPONSE 30° OFF-AXIS: ±2 dB from 70 Hz - 18 kHz
• MID/BASS FREQUENCY DRIVER: 6.5” (16.5cm) Mineral-filled Polypropylene Cone
• SENSITIVITY ROOM / ANECHOIC: 89 dB / 85 dB
• LOW FREQUENCY EXTENSION: 55 Hz
• SUITABLE AMPLIFIER POWER RANGE: 15-80 W
• MAXIMUM INPUT POWER: 50 W
• IMPEDANCE: Compatible with 8 ohms
• ACCESSORIES (NOT INCLUDED): PB-8RN
• CUT-OUT DIMENSIONS: 7-3/4” (19.6cm) dia.
• MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.): 3” (7.6cm)
• DIMENSIONS HXWXD (INCLUDES GRILLE): .8-3/4” (diameter) x 3-5/8” (depth) (22.1cm x 9.2cm)
• WEIGHT: 3.5 lbs (1.6 kg)
• FINISHES: White, paintable grille, black speaker
• MPN: 1090000085
