REL Acoustics T/5x in Black - REL Acoustics

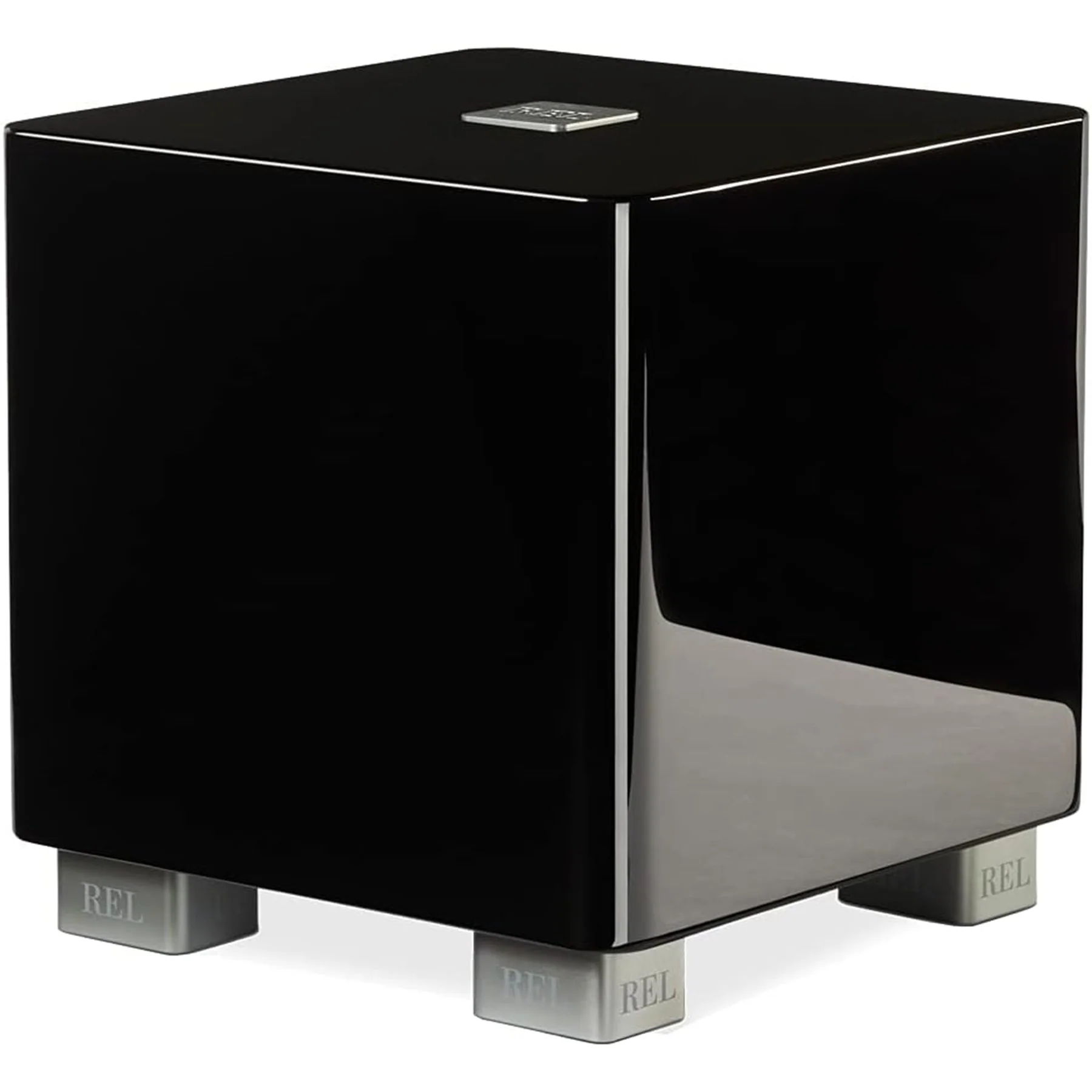

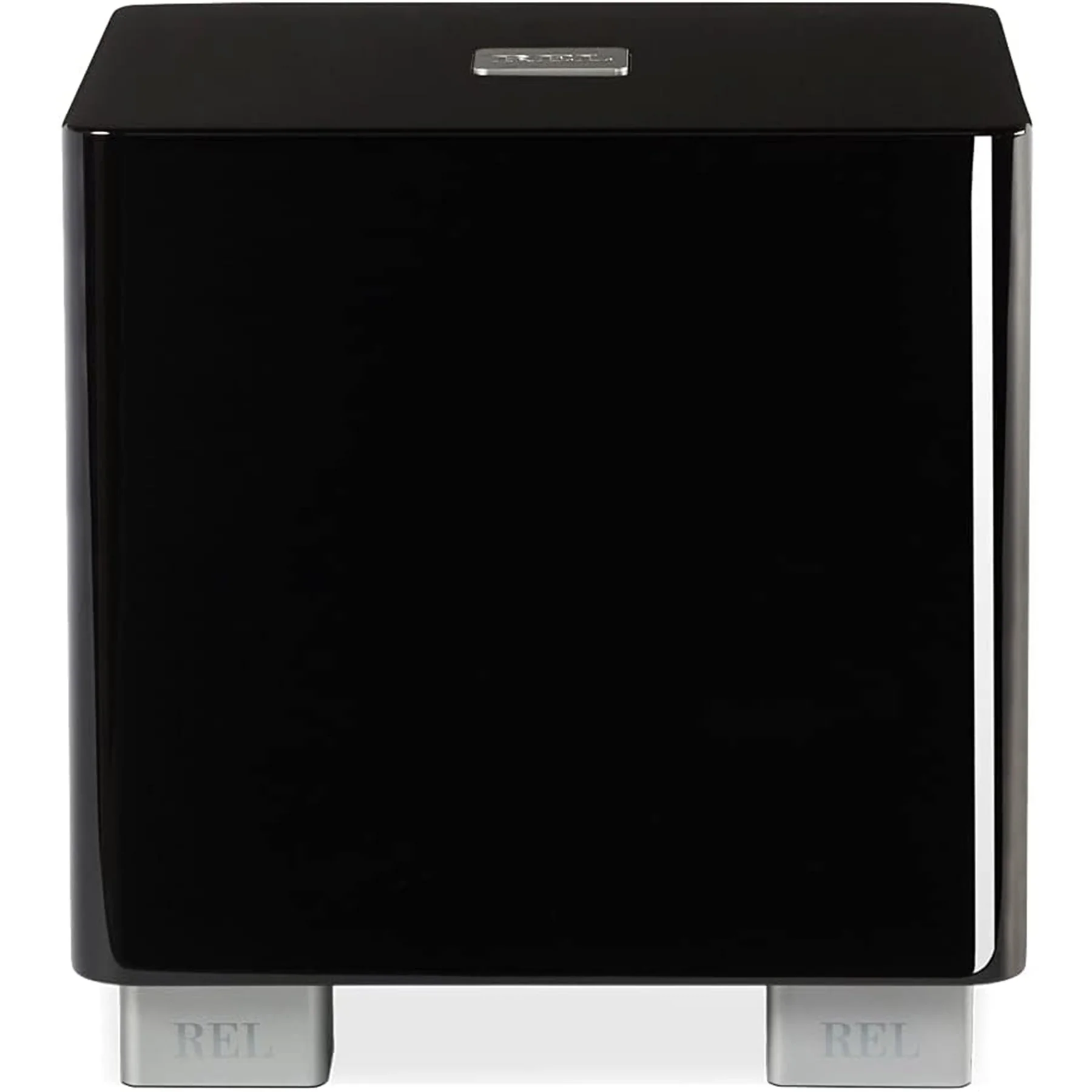

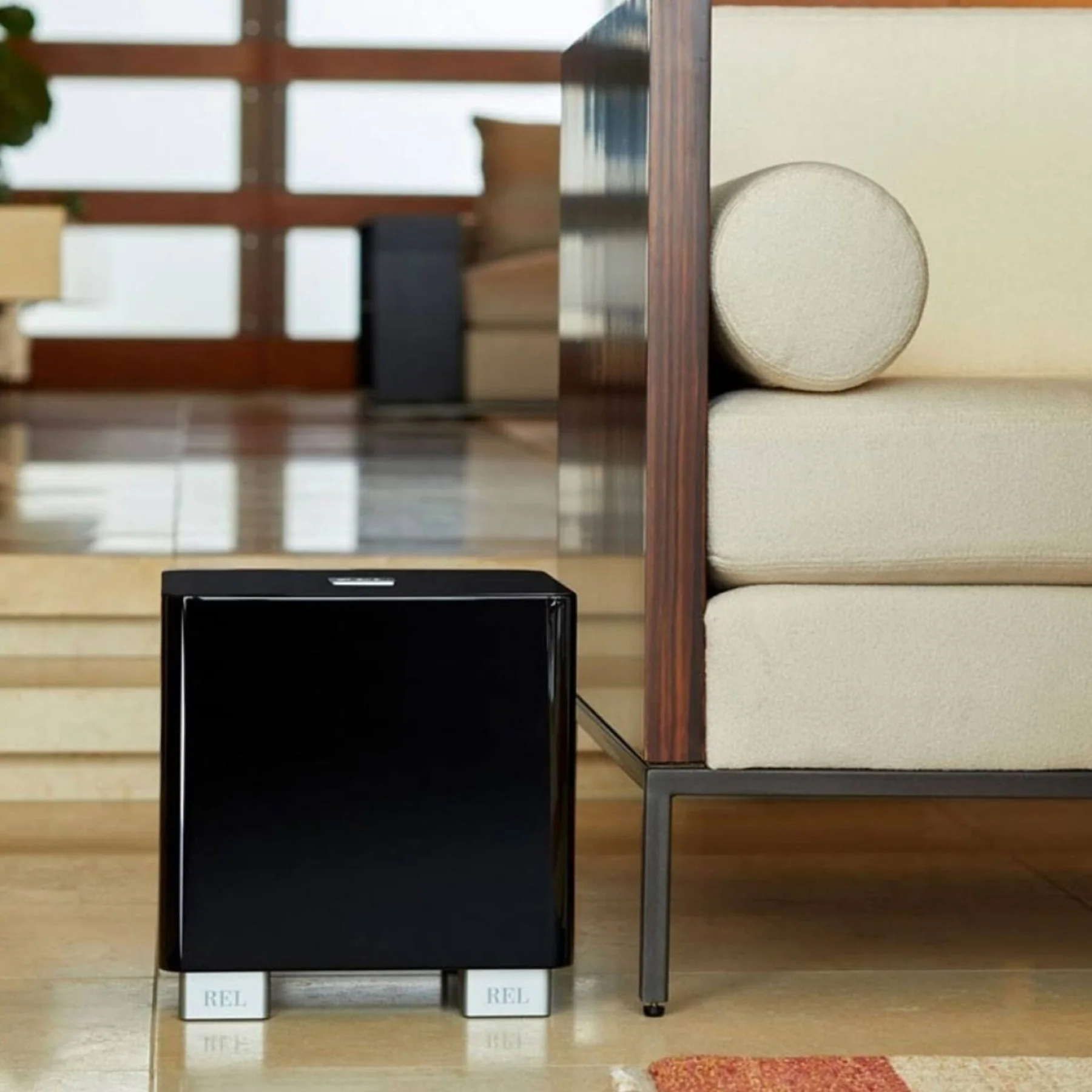

Perfect for small and medium rooms, T/5x seats perfectly into any décor. Floor-firing is part of its secret; bass energy strikes the floor and spreads uniformly throughout the space making it perform like a larger model. For those picky about style, the hidden bonus is this design eliminates even the grill, rendering it the purest of forms.

Slightly larger in volume than its predecessor, it actually appears to be smaller due subtle design changes to minimize it’s visual presence. Finally, 5 hand polished coats of lacquer in your choice of High Gloss White or Piano Black add luster to the softly rounded cabinetry.

A 360-degree Upgrade
Many don’t realize the intense linkage between performance and design here at REL. Performance is everything to us and so it drives physical design revisions. Our engineers, recognizing the need for greater acoustic volume to achieve the goals of greater fluidity and power, turn to the designer who works dimensions to fool the eye into seeing a smaller, more compact footprint even though cabinet volume increases. Using gently rounded corner radii that allows the eye to flow over and see less visual mass. The result is both modern and familiar with no unnecessary adornment.

Faster & Deeper

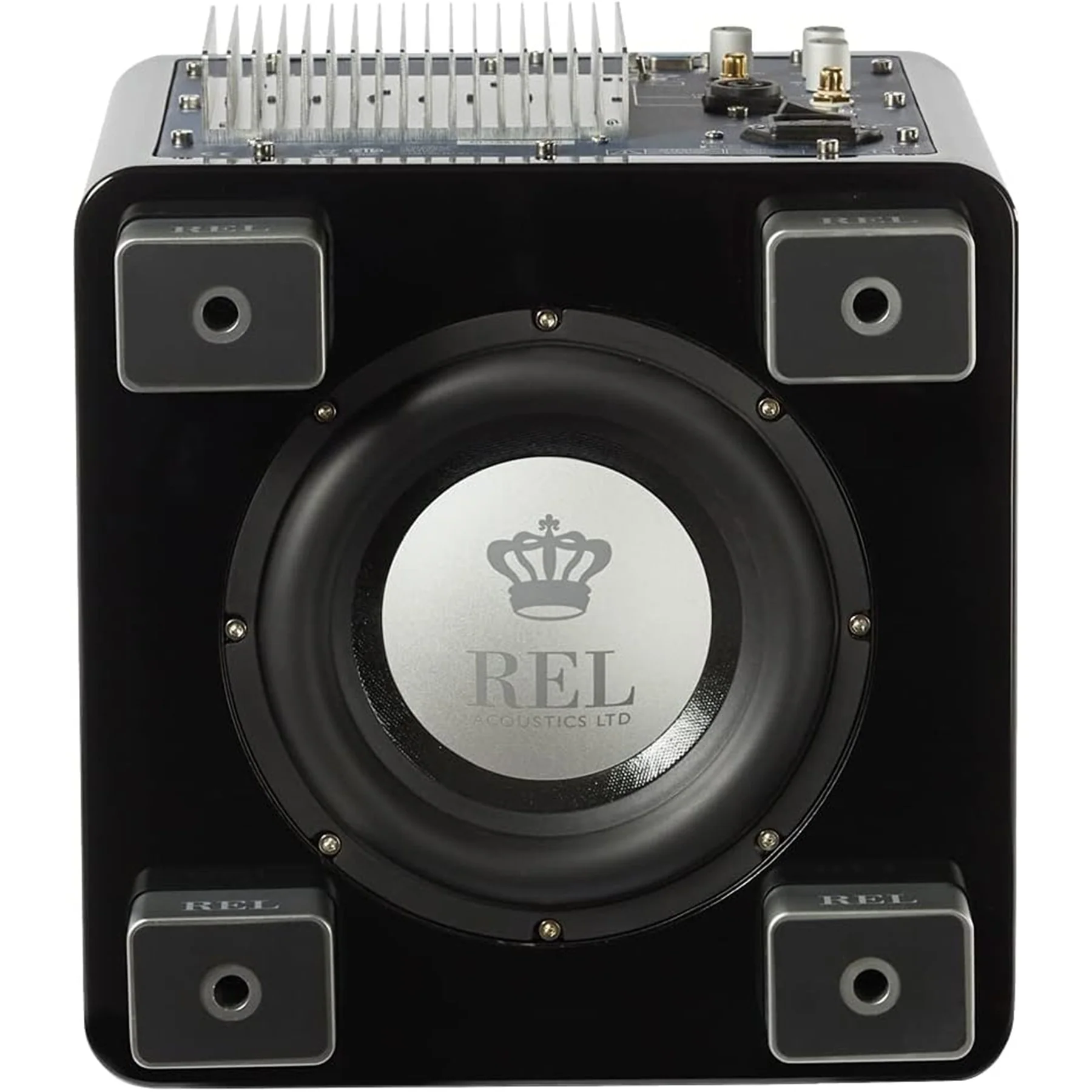

T/5x borrows a single longthrow 8” (200mm) bass engine from its elder sibling, T/7x. Developed using a composite of aluminum and light paper, this cone captures details that will amaze, while supplying sufficient energy to plumb deeper than one would expect for its size. In T/5x, its throw–the ability to play louder–has been increased. Internally, the suspension received numerous upgrades akin to transforming the handling of a car from a family sedan to a true sports car. More power, greater finesse.

REL's Reliable Brains And Brawn
T/5x builds on its predecessor’s reliable, expensive 125 W Class A/B amplifiers. Internally, key items significant to upgrading transparency and speed have been upgraded at no cost to REL’s legendary reliability. Separate inputs for High Level Inputs, Low Level Input (necessary for the increasing number of powered active speakers emerging on the market) allow for a natural, perfect transition from speaker to subwoofer. And in theater a separate, dedicated .1/LFE Input for Theatre performance permits automatic transition between music in high end 2-channel applications and home theater without needing to change a single setting. Magic? No, superior engineering.

REL Acoustics T/5x Subwoofer Specifications

General

• Type: Closed-box, down-firing subwoofer

• Low-Frequency Extension: -6dB at 32 Hz

• Finish Options: Piano Black Lacquer or Gloss White Lacquer (5 coats)

Driver

• Active Driver: 8-inch (200mm) long-throw FibreAlloy™ cone

• Passive Radiator: None

Amplifier

• Power Output: 125 watts RMS

• Amplifier Type: Class A/B

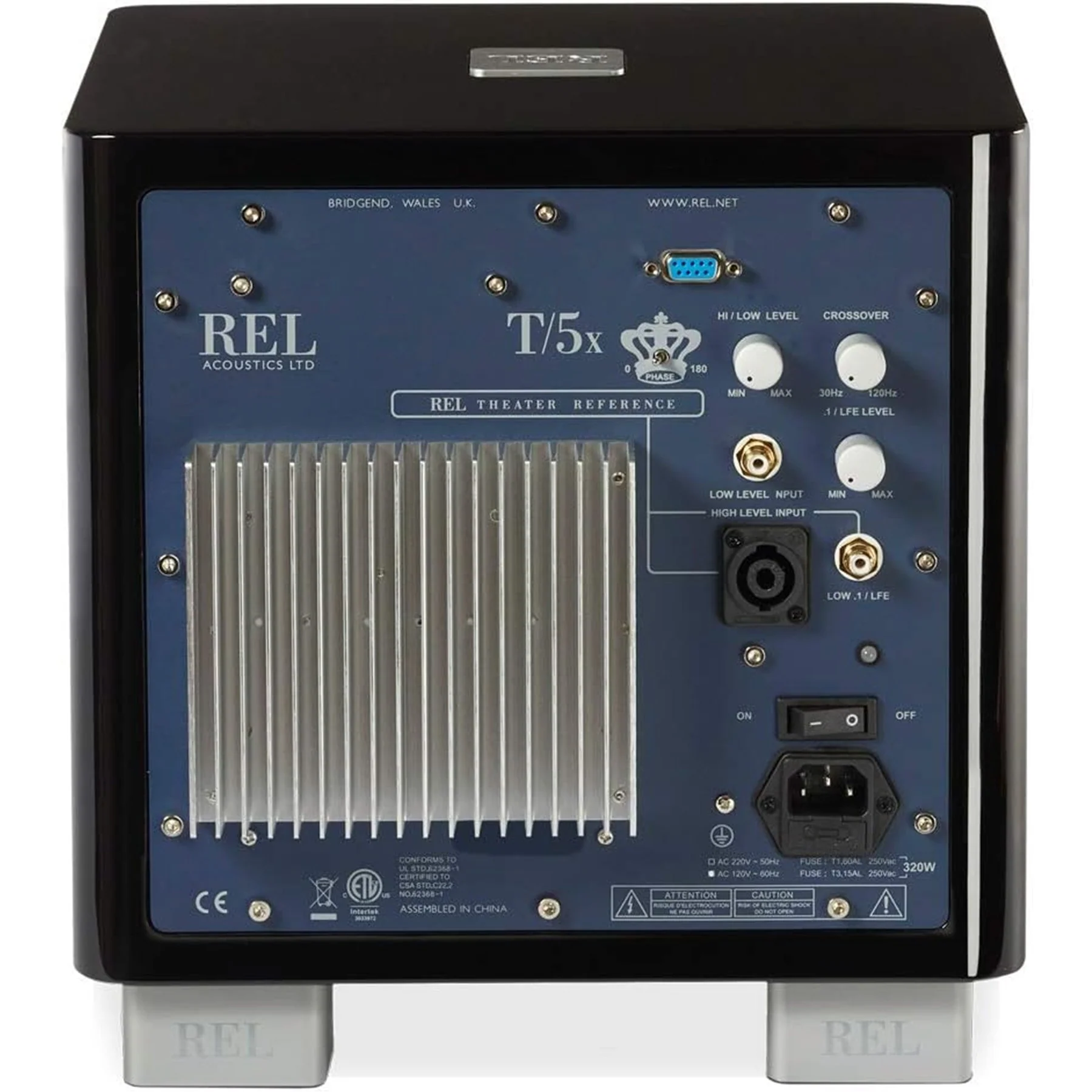

Inputs & Connectivity

• High-Level Input: Neutrik Speakon

• Low-Level Input: (1) RCA

• LFE Input: (1) RCA

• Wireless Compatibility: REL Arrow Wireless System (sold separately)

Physical Dimensions

• Width: 11.8 inches (300 mm)

• Height: 12 inches (307 mm)

• Depth: 12.3 inches (313 mm)

• Weight: 31.5 lbs (14.3 kg)

The REL Acoustics T/5x subwoofer package typically includes the following items:

• REL T/5x Subwoofer Unit: The main subwoofer component.

• Power Cable: For connecting the subwoofer to a power source.

• Neutrik Speakon High-Level Cable: A specialized cable for high-level input connections.

• User Manual: Instructions and guidelines for setup and operation.

• Warranty Information: Details regarding the product's warranty coverage.
