Hegel D50 (The Raven) Reference DAC
Hegel D50 “The Raven” Reference DAC
Purist fixed-output DAC • USB 32/384 • DSD256 (DoP) • MQA 8× • AES/EBU + Coax + Optical
Meet the D50 “The Raven”
The Hegel D50 is a dedicated, no-compromise digital-to-analog converter built around a simple idea: do one job exceptionally well. There’s no network streaming platform, no preamp stage, and no variable output— just a quiet, high-precision conversion path designed to pull out detail, space, and timing without adding edge or glare.
“The Raven” name nods to its focus on clarity and insight—turning digital data into a natural, engaging musical presentation.
Highlights & Benefits
- Purist DAC design — fixed line-level outputs for the cleanest signal path (pair with an integrated amp or preamp).
- Complete digital connectivity — AES/EBU, coax (BNC + RCA), 2× optical, and USB for computers/servers.
- High-resolution support — USB handles up to 32-bit/384 kHz, DSD256 (DoP), and MQA 8×.
- Ultra-low noise performance — engineered for black backgrounds and effortless low-level detail.
- Balanced or single-ended integration — fixed XLR and RCA outputs for any two-channel system.
Technology & Design
Focused conversion, nothing extra — The D50 is built as a dedicated DAC (no streaming module or volume-controlled preamp section), keeping the internal architecture optimized for conversion and noise control.
Input-specific capability — AES/EBU and coaxial S/PDIF support up to 24/192 (plus DSD64 (DoP) on AES/EBU and coax), while optical S/PDIF supports up to 24/96. USB unlocks the full capability up to 32/384, DSD256 (DoP), and MQA 8×.

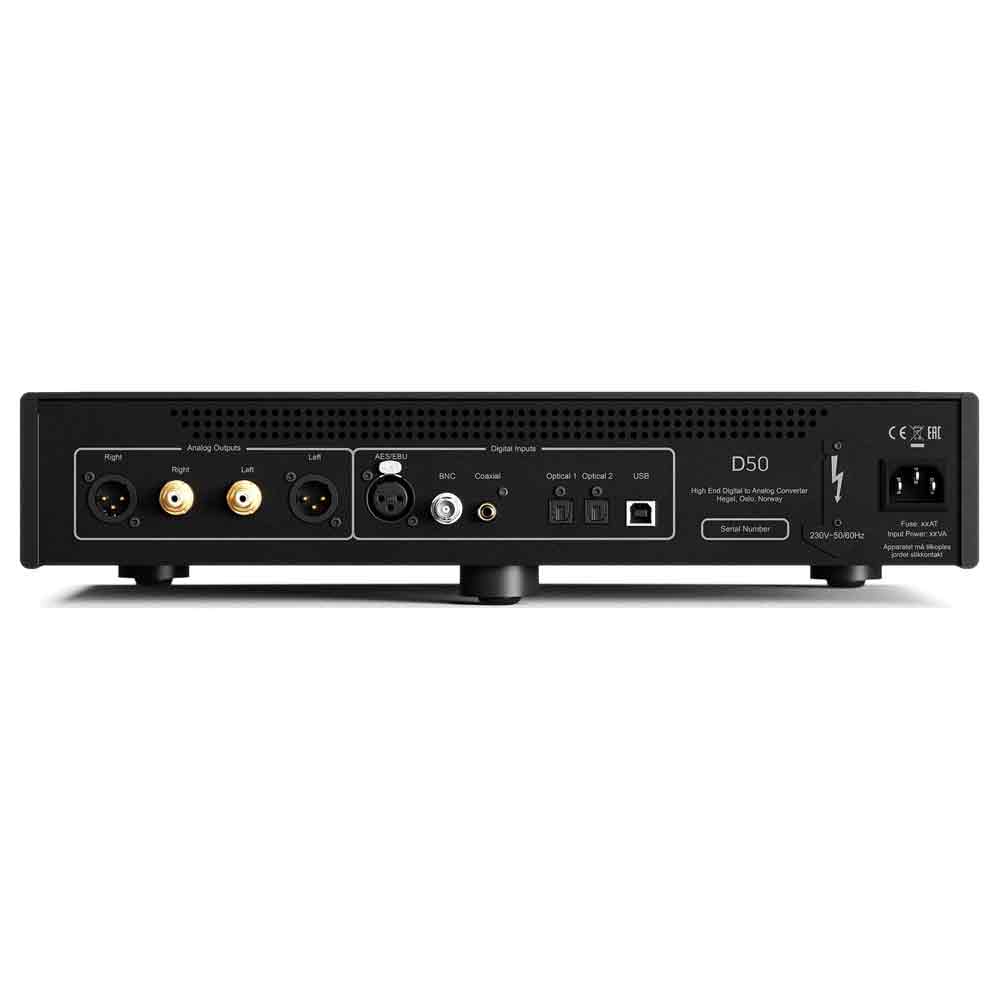

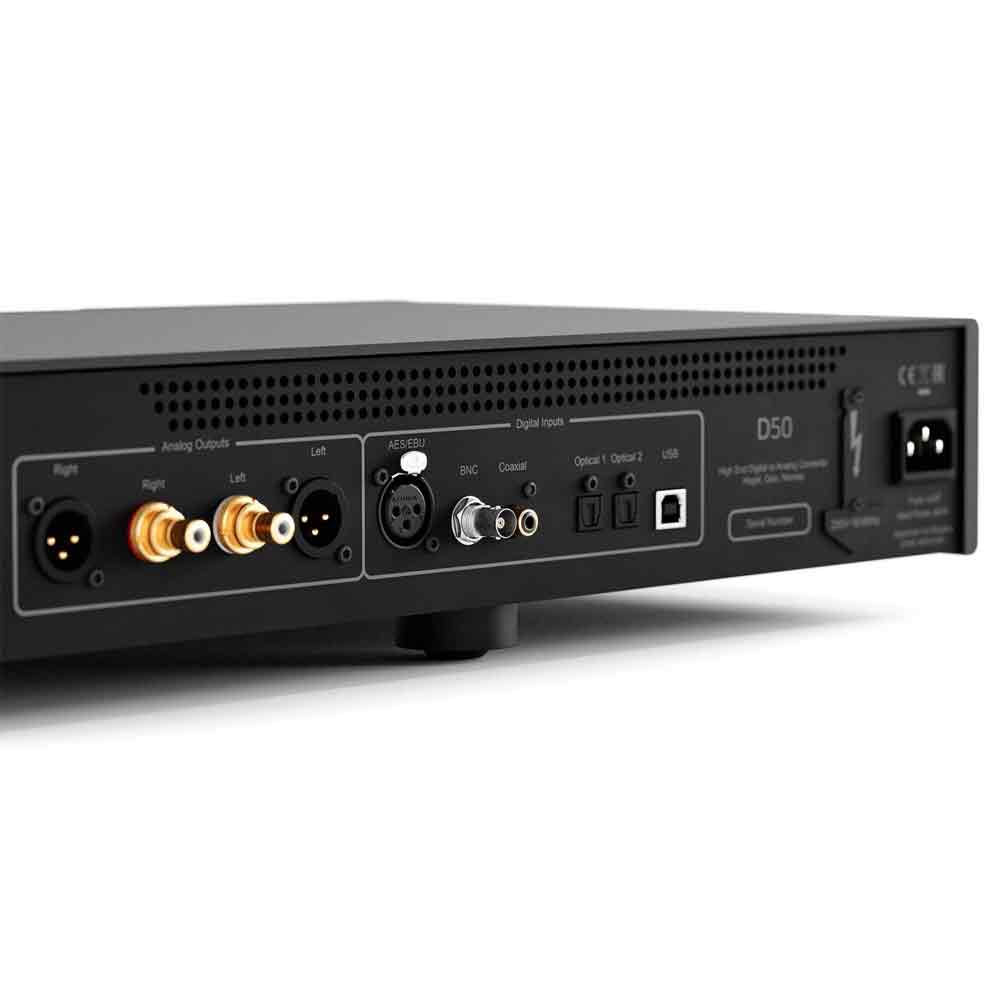

System-friendly fixed outputs — Choose either the balanced XLR or unbalanced RCA fixed line-level outputs (both specified at 2.5 V) to match your amplifier/preamp input preference.
FAQ — D50 “The Raven”
Is the D50 a streamer?
No. The D50 is a standalone DAC only. You’ll connect a streamer, transport, TV, or computer via its digital inputs, then feed your amplifier or preamp from the D50’s fixed analog outputs.
Does it have volume control?
The D50’s analog outputs are fixed. Use your integrated amplifier, preamp, or active speakers to control volume.
What’s the best input to use?
If you’re using a music server/computer, USB provides the highest supported resolution. For transports/streamers, AES/EBU or coaxial are excellent choices; optical can be ideal when electrical isolation is helpful.
Will it work with my system?
The D50 offers both balanced XLR and RCA fixed outputs, so it integrates easily with most two-channel amps and preamps. If you want help choosing the right connection method for your source and cable run length, we can guide you.
Why Buy From Us
- Authorized Hegel Dealer
- System Design & Component Matching Expertise
- Streamer/TV/Transport Integration Support
- Lifetime Technical Support
Hegel D50 “The Raven” Reference DAC
Purist fixed-output DAC • USB 32/384 • DSD256 (DoP) • MQA 8× • AES/EBU + Coax + Optical
Meet the D50 “The Raven”
The Hegel D50 is a dedicated, no-compromise digital-to-analog converter built around a simple idea: do one job exceptionally well. There’s no network streaming platform, no preamp stage, and no variable output— just a quiet, high-precision conversion path designed to pull out detail, space, and timing without adding edge or glare.
“The Raven” name nods to its focus on clarity and insight—turning digital data into a natural, engaging musical presentation.
Highlights & Benefits
- Purist DAC design — fixed line-level outputs for the cleanest signal path (pair with an integrated amp or preamp).
- Complete digital connectivity — AES/EBU, coax (BNC + RCA), 2× optical, and USB for computers/servers.
- High-resolution support — USB handles up to 32-bit/384 kHz, DSD256 (DoP), and MQA 8×.
- Ultra-low noise performance — engineered for black backgrounds and effortless low-level detail.
- Balanced or single-ended integration — fixed XLR and RCA outputs for any two-channel system.
Technology & Design
Focused conversion, nothing extra — The D50 is built as a dedicated DAC (no streaming module or volume-controlled preamp section), keeping the internal architecture optimized for conversion and noise control.
Input-specific capability — AES/EBU and coaxial S/PDIF support up to 24/192 (plus DSD64 (DoP) on AES/EBU and coax), while optical S/PDIF supports up to 24/96. USB unlocks the full capability up to 32/384, DSD256 (DoP), and MQA 8×.
System-friendly fixed outputs — Choose either the balanced XLR or unbalanced RCA fixed line-level outputs (both specified at 2.5 V) to match your amplifier/preamp input preference.
FAQ — D50 “The Raven”
Is the D50 a streamer?
No. The D50 is a standalone DAC only. You’ll connect a streamer, transport, TV, or computer via its digital inputs, then feed your amplifier or preamp from the D50’s fixed analog outputs.
Does it have volume control?
The D50’s analog outputs are fixed. Use your integrated amplifier, preamp, or active speakers to control volume.
What’s the best input to use?
If you’re using a music server/computer, USB provides the highest supported resolution. For transports/streamers, AES/EBU or coaxial are excellent choices; optical can be ideal when electrical isolation is helpful.
Will it work with my system?
The D50 offers both balanced XLR and RCA fixed outputs, so it integrates easily with most two-channel amps and preamps. If you want help choosing the right connection method for your source and cable run length, we can guide you.
Why Buy From Us
- Authorized Hegel Dealer
- System Design & Component Matching Expertise
- Streamer/TV/Transport Integration Support
- Lifetime Technical Support
Original: $4,900.00
-65%$4,900.00
$1,715.00Description
